Overview

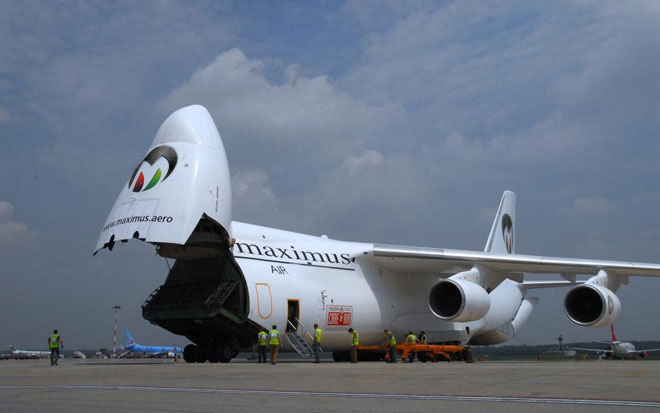

The heaviest of the heavyweight cargo lifters. It has a unique self contained multiple winch and overhead crane system capable of self loading / unloading 120 tonne from front or rear. Can carry 21x Toyota Land Cruisers or 4 x Mi 17 MTV Helicopters without breaking a sweat.

Antonov-An-124-1
Usecase

Antonov-An-124-2
Usecase

Antonov-An-124-3
Usecase

Antonov An-124-100 Specification

Antonov An-124-100

Antonov

Cross Section

Antonov

Cargo Door Openings

Antonov

Main Deck Cabin Layout

Antonov

Technical Specifications

Maximum Number of Escorts 13 Overall Height 21.1 Meters
Maximum Takeoff Weight 322,000 Kgs Front & Aft Cargo Door Size WH 6.40x4.40 m
Maximum Payload (Structural) 120, 000 Kgs Hold Dimensions LWH 36.50(43.7) x6.4x4.4 m
Cruise Speed 824 Km / Hr Maximum Hold Volume 1040 m3
Engines Progress D18T Unit Load Device Capacity non palletized flooring
Fuel Burn 5,860 USG / Hr-17,300 Kgs / Hr Internal Roof Gantry Cranes Max Capacity 30,000 Kgs
Wing Span 73.3 Meters Maximum Range 8,400 nm
Overall Length 69.1 Meters Range with Maximum Payload 2,350 nm
